About Our Products
Engineering that holds up
A closer look at the specifications behind our flagship systems.
Online UPS (Customized Pure Sine Wave Systems)
- Compact design with LCD / digital display
- PWM-based IGBT technology
- Pure sine wave output
- Inbuilt galvanic isolation transformer
- Output THDi < 3%
- Input power factor correction
- Alarm, SMS & email notification facility
High Frequency IGBT Online UPS (1KVA–100KVA)
Servo Voltage Stabilizer (Air & Oil Cooled)
- Wide input voltage variation range correction
- High speed copper wire wound autotransformer & buck-boost transformer
- Microprocessor / IC controlled sensing circuit
- High efficiency (>98%) and zero waveform distortion
- Suitable for unbalanced input supply & load
- Over-voltage, under-voltage & overload protections
Precision-Engineered Power Electronics

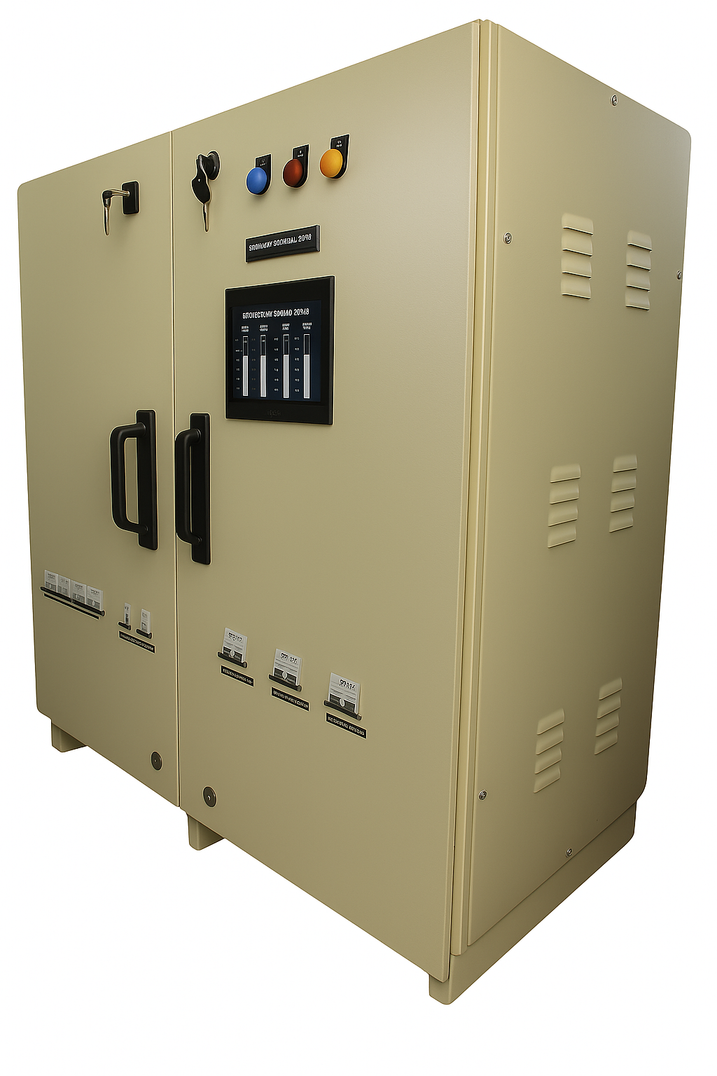

Battery Charger (Float Cum Boost Charger)
- SCR controlled full-bridge single phase charger
- SCR controlled 6-pulse full-bridge three phase charger
- IGBT based charger — input power factor better than 0.9
- Auto changeover from float mode to boost mode & boost to float mode
- Voltage & current regulation ±0.5%
- Inbuilt isolation transformer
- Efficiency better than 80% at nominal voltage
- Digital display to monitor voltage & current
Industrial Microprocessor Controlled Battery Charger
Static Transfer Switch (STS / ATS)
- Powered by two independent power sources
- Dual power supply for full redundancy
- Seamless switching (<4ms) for critical IT equipment
- Preferred source selectable from the front panel
- Floor & wall mounted — 19" rack design (2U) to fit diverse environments
Floor-Mounted ATS Cabinet
Industrial Inverters (1Ph & 3Ph Heavy Duty)
- Designed for harsh industrial environments and inductive motor loads
- High surge capability up to 300% for heavy motor startup
- PWM IGBT topology with digital DSP control unit
- Comprehensive protection against overload, short circuit & thermal trip
Connected Monitoring & Control
Static Frequency Converters (50Hz / 60Hz / 400Hz)
- Converts input frequency (50Hz/60Hz) to fixed 50Hz, 60Hz or 400Hz output
- Ideal for defense, aerospace, export testing labs & marine applications
- Sine wave output with precise frequency stability (±0.05Hz)
- Galvanically isolated input & output stages
Advanced Power Conversion Technology
Ultra Isolation Transformers
- Attenuates electrical noise, high-frequency transients and common mode spikes
- Dual electrostatic shielding between primary and secondary windings
- Class H insulation with high dielectric strength
- Improves power quality for sensitive CNC, medical & data center equipment
Power Quality & Isolation Systems
